Thank you for using our Modern Fuel Click Pen. It is a precision writing instrument that has been manufactured to the highest quality standards and we hope that it will provide you many years of optimal use. Your Modern Fuel writing instrument is unique in that its cone and body will only ever match with each other due to the custom-finish process used during the manufacturing process.


For your convenience, we have included written instructions with diagrams below. Most issues with our writing instruments can be solved quickly using the steps outlined below. Rarely, a manufacturing defect may present itself and necessitate a warranty replacement. See the information below for submitting a request for warranty service.


Replacing Click Pen Refill

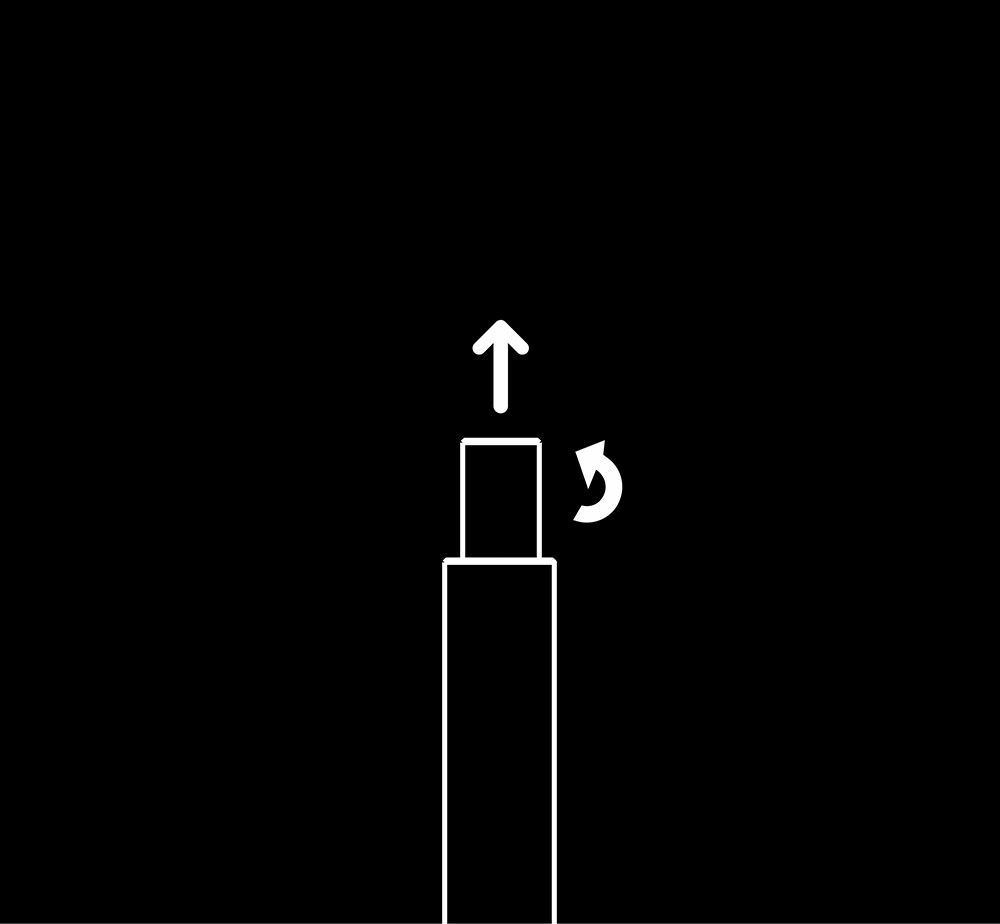

  • UNSCREW PEN KNOCK

    The mechanism may unscrew with the knock if so, proceed to Step 3.

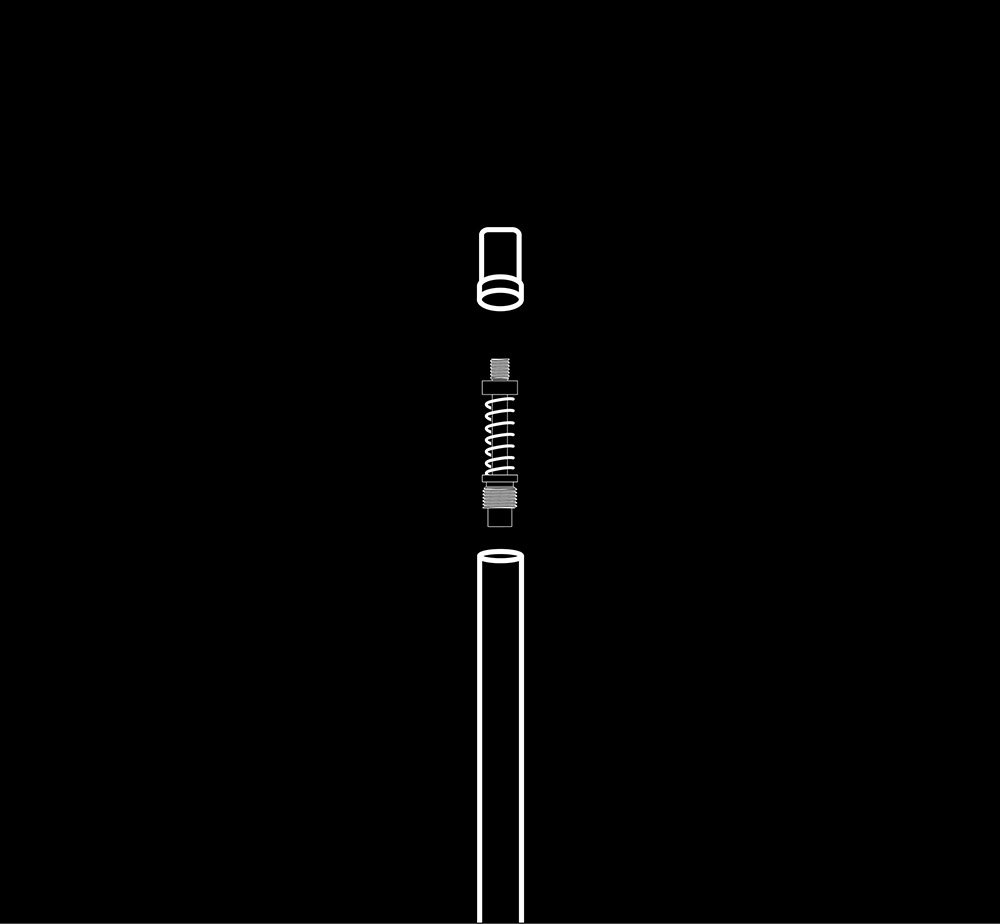

  • REMOVE CLICK PEN MECHANISM

    Using a small screwdriver, unscrew and remove the mechanism.

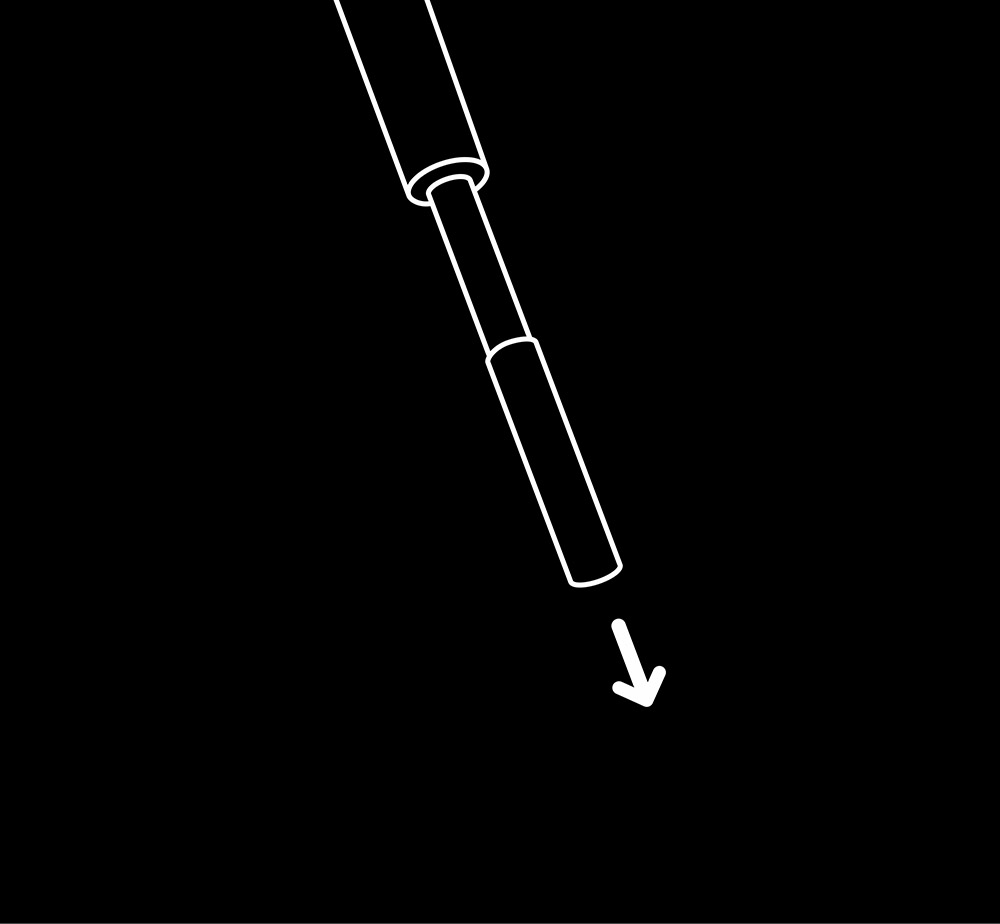

  • REMOVE REFILL FROM PEN BODY

    Turn the pen body over to allow the pen to fall from the body of pen, including pen adapter and spring.

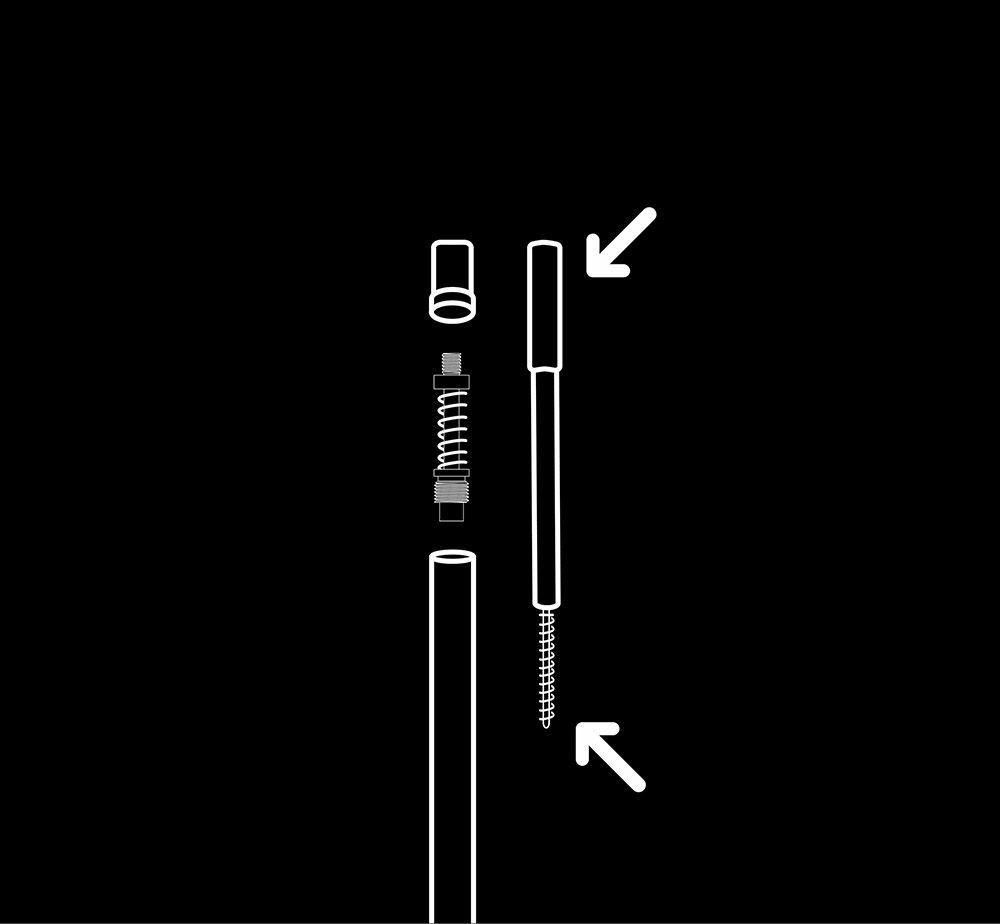

  • REMOVE SPRING AND EXTENDER

    Remove the spring and extender from the refill that will be replaced and add to the Modern Fuel Space refill.

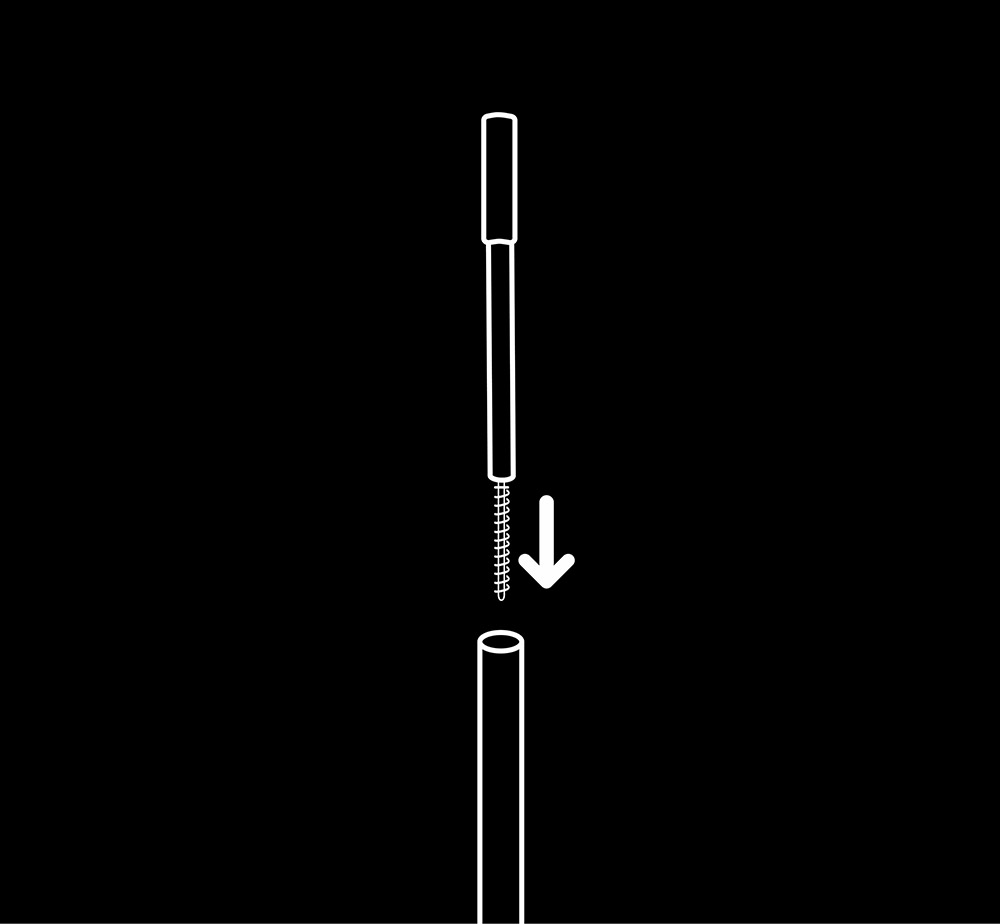

  • INSERT NEW REFILL

    With the spring and adapter on the new refill, insert into pen body.

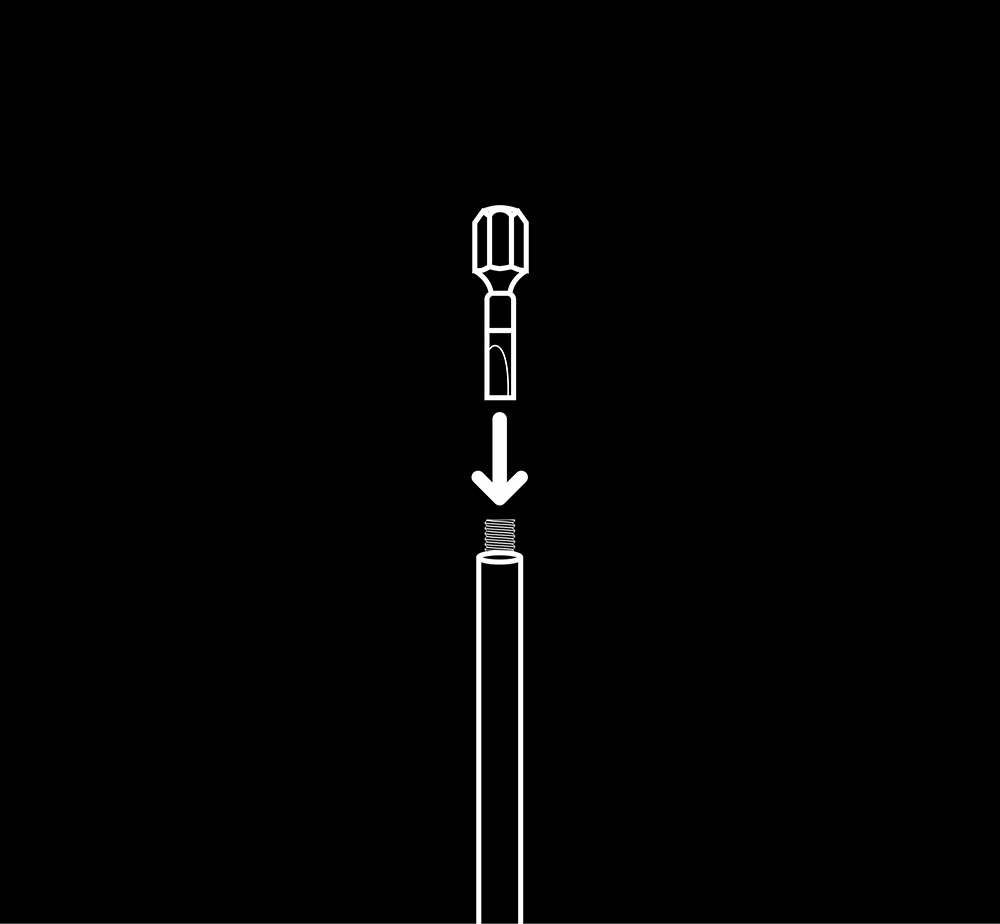

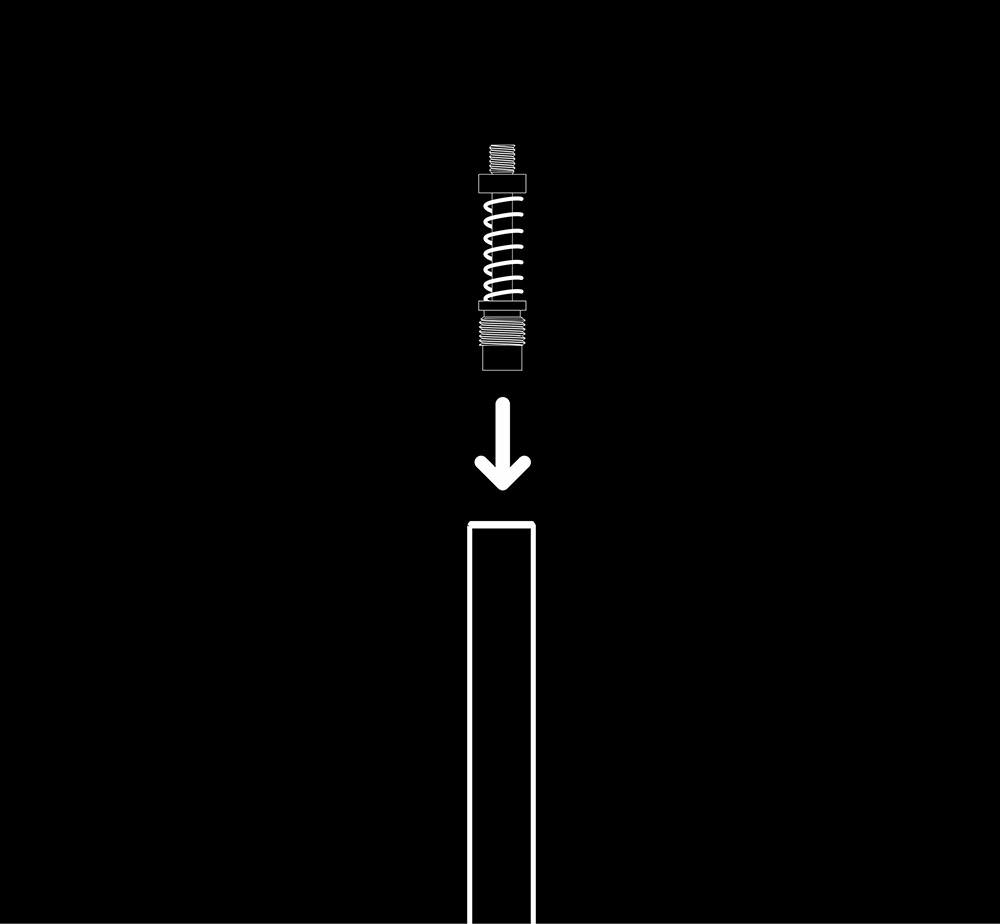

  • INSTALL MECHANISM

    Using the same small screwdriver, screw the mechanism into the pen body. Do not over tighten.

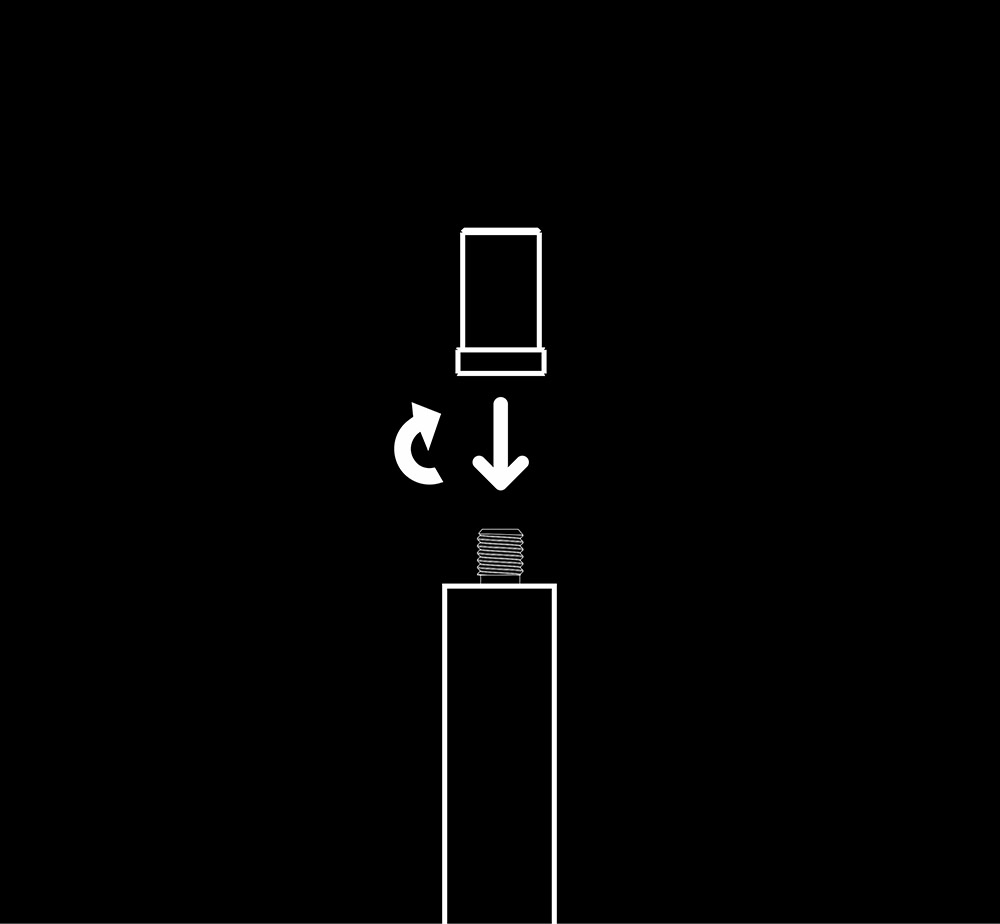

  • REPLACE PEN KNOCK

    With the mechanism screwed into the pen body, replace the pen knock by screwing it onto the mechanism. Do not over tighten.
